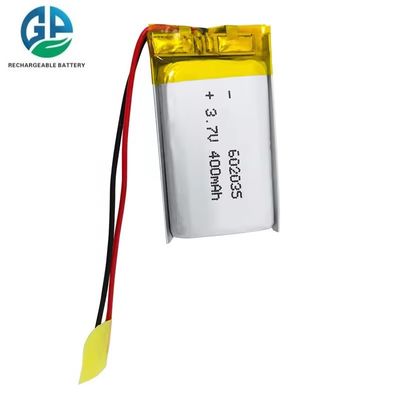

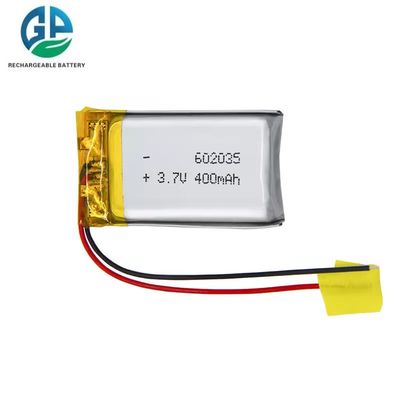

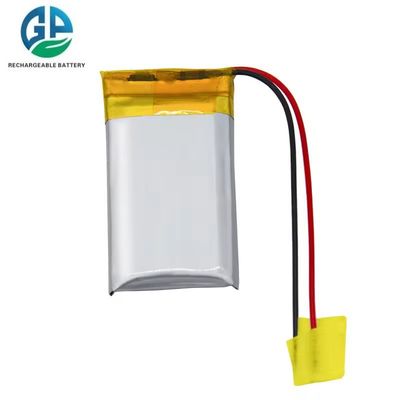

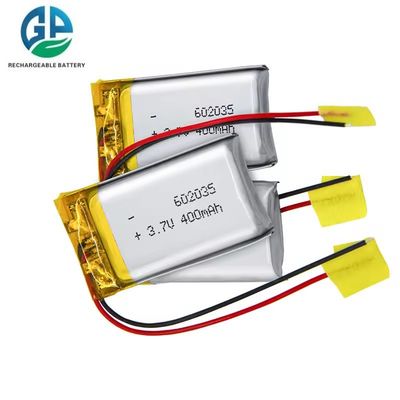

| Numero di modello: | LP602035 |
| MOQ: | 2000pieces |
| Dettagli dell' imballaggio: | Bulk packing |
| Condizioni di pagamento: | T/T |
| N. | Articolo | Specifiche | Osservazione |
|---|---|---|---|
| 1 | Specifiche (602035) | Capacità: 400mAh | Scarica a 0,5C dopo la carica standard |
| 2 | Voltaggio | 3.7V | Tensione media di funzionamento durante lo standard |
| 3 | Tensione alla fine della scarica | 2.75V | Tensione di interruzione della scarica |
| 4 | Tensione di interruzione della carica | 4.2V | |
| 5 | Impedenza | ≤100mΩ | Batteria LiFePO4 da 3,7 V 400 mAh |
| 6 | Carica standard | Corrente costante 0,25C Tensione costante 3,7 V Corrente di interruzione ≤0,01C |
|
| 7 | Scarica standard | Corrente costante 0,5C Tensione finale 2,75 V |
|
| 8 | Ricarica rapida | Corrente costante 0,5C Tensione costante 3,7 V Corrente di interruzione ≤0,02C |
|
| 9 | Scarica rapida | Corrente costante 0,5C Tensione finale 2,75 V |
|
| 10 | Corrente di scarica continua massima | 1.0C | |
| 11 | Intervallo di temperatura di funzionamento | Carica: 0~45°C Scarica: -20~80°C |
80±5% U.R. |
| 12 | Ciclo di vita | 500 volte | |
| 13 | Temperatura di stoccaggio | -20 ~ 45°C | |
| 14 | Peso | 8g | |
| 15 | Dimensione (mm) | 6mm * 20mm * 35mm |
| Modello | Dimensione cella | Con dimensione PCM | Capacità |
|---|---|---|---|
| 302025 | 3.0*20*25mm | 3.2*21*27.5mm | 3.7V 100mAh |
| 302530 | 3.0*25*30mm | 3.2*26*32.5mm | 3.7V 180mAh |
| 401824 | 4.0*18*24mm | 4.2*19*26.5mm | 3.7V 180mAh |
| 402525 | 4.0*25*25mm | 4.2*26*27.5mm | 3.7V 200mAh |
| 483450 | 4.8*34*50mm | 5.0*35*52.5mm | 3.7V 850mAh |
| 502030 | 5.0*20*30mm | 5.2*21*32.5mm | 3.7V 240mAh |
| 502525 | 5.0*25*25mm | 5.2*26*27.5mm | 3.7V 180mAh |
| 503030 | 5.0*30*30mm | 5.2*31*32.5mm | 3.7V 430mAh |
| 523450 | 5.2*34*50mm | 5.4*35*52.5mm | 3.7V 1000mAh |
| 553444 | 5.5*34*44mm | 5.7*35*46.5mm | 3.7V 850mAh |
| 553640 | 5.5*36*40mm | 5.7*37*42.5mm | 3.7V 850mAh |
| 553759 | 5.5*37*59mm | 5.7*38*61.5mm | 3.7V 1400mAh |
| 602030 | 6.0*20*30mm | 6.2*21*32.5mm | 3.7V 300mAh |
| 602240 | 6.0*22*40mm | 6.2*23*42.5mm | 3.7V 500mAh |
| 602535 | 6.0*25*35mm | 6.2*26*37.5mm | 3.7V 500mAh |
| 602663 | 6.0*26*63mm | 6.2*27*65.5mm | 3.7V 1000mAh |
| 603030 | 6.0*30*30mm | 6.2*31*32.5mm | 3.7V 520mAh |
| 603040 | 6.0*30*40mm | 6.2*31*42.5mm | 3.7V 750mAh |
| 603048 | 6.0*30*48mm | 6.2*31*50.5mm | 3.7V 900mAh |
| 603450 | 6.0*34*50mm | 6.2*35*52.5mm | 3.7V 1200mAh |
| 656090 | 6.5*60*90mm | 6.5*60*92.5mm | 3.7V 5000mAh |
| 702040 | 7.0*21*40mm | 7.2*22*42.5mm | 3.7V 500mAh |
| 753048 | 7.5*30*48mm | 7.7*31*50.5mm | 3.7V 1200mAh |
| 803035 | 8.0*30*35mm | 8.2*31*37.5mm | 3.7V 800mAh |
| 855465 | 8.5*54*65mm | 8.5*54*65mm | 3.7V 4000mAh |
| 863040 | 8.6*30*40mm | 8.8*30*42.5mm | 3.7V 1000mAh |
| 904060 | 9*40*60mm | 9.2*40*62.5mm | 3.7V 2500mAh |
| 883760 | 8.8*37*60mm | 9*57*51.6mm | 3.7V 2000mAh |
| 103048 | 10.2*30*48mm | 10.2*30*50.5mm | 3.7V 1500mAh |
| 103040 | 10.2*30*40mm | 10.2*30*42.5mm | 3.7V 1200mAh |
| 114261 | 11*42*61mm | 11*42*63.5mm | 3.7V 3400mAh |
| 122773 | 12*27*73mm | 12*27*75.5mm | 3.7V 2400mAh |
